CQ10 is an LTE Cat 1 module with 2G fall back compliant with 3GPP release 10 standards, with emphasis on IoT & M2M applications. Engineered in LCC+LGA form factor, it delivers a maximum data rate of 10 Mbit/s DL & 5 Mbit/s UL. CQ10 supports in-built GNSS powered by Qualcomm® Location Suite Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS), ensuring precise positioning. Additionally, it supports VoLTE and SMS over IMS/SG/CS and a wide variety of Internet protocols and industry-standard hardware interfaces.
The module comes in a world wide variant: CQ10-WW for worldwide deployments with other regional variants under development. Featuring an optional integrated eSIM powered by Cavli Hubble Device and connectivity management platform, the module provides seamless global connectivity and wide coverage which helps to reduce the time to market. CQ10 is tailored for IoT and M2M applications, such as asset tracking, automotive, e-mobility, data loggers, fleet management, environmental monitoring and much more.
Key Highlights
OpenSDK Support
Integrated eSIM
Powered by Cavli Hubble
Americas APAC EMEA
In-built dual band GNSS
2G Fallback
LTE Cat 19 Fallback
USB 3.1 Gen2 Interface
SMS over IMS/SG/CS
USB OTG support

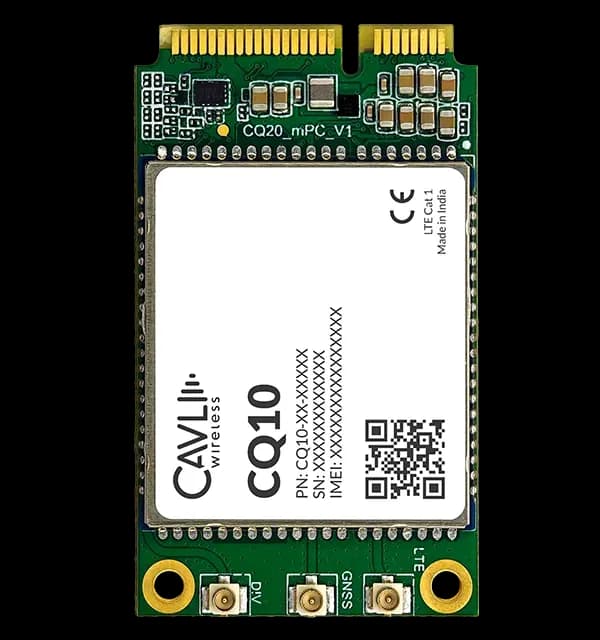

Available Form-Factors
LGA
Technical Data
Cellular Bands Supported
WW : LTE - 1/2/3/4/5/7/8/12/ 13/18/19/20/25/26/28/40/66
NA : LTE - 2/4/5/12/13/25/66
EAJ : LTE - 1/3/5/7/8/18/19/20/26/28/40
EU : LTE - 1/3/7/8/20/28
IN : LTE - 1/3/5/8/40
AN : LTE - 1/3/5/8/18/19/26/28
LA : LTE - 1/2/3/4/5/7/8
Supported Location Services
GPS / GLONASS / BeiDou / Galileo / QZSS Capable
OS
Yocto Linux (Kernel 4.14)
Cellular Connectivity Download & Uplink Speed (* Peak Values)
LTE Cat 1 : 10 Mbps (DL), 5 Mbps (UL)
2G : 236.8 Kbps (DL), 236.8 Kbps (UL)
Packaging
Dimension : 32 x 29 x TBD mm, LCC+LGA Package
Interfaces
UART x3, USB 2.0 (HS) x1, HSIC x1, WLAN/BT (External) x1, SDC x2, USIM (1.8V / 2.85V) x1, Network Status Indicator x2, Power ON Status Indicator x1, SGMII x1, I2C x1**, ADC x2, PCM x1**, JTAG x1, Main ANT x1, GNSS ANT x1, Diversity ANT x1
Applicable Industries
Agriculture
Smart City
Energy & Utilities
Manufacturing
