Cavli Wireless

CQS290

LTE Cat 4

3GPP Release 10

Available form-factors

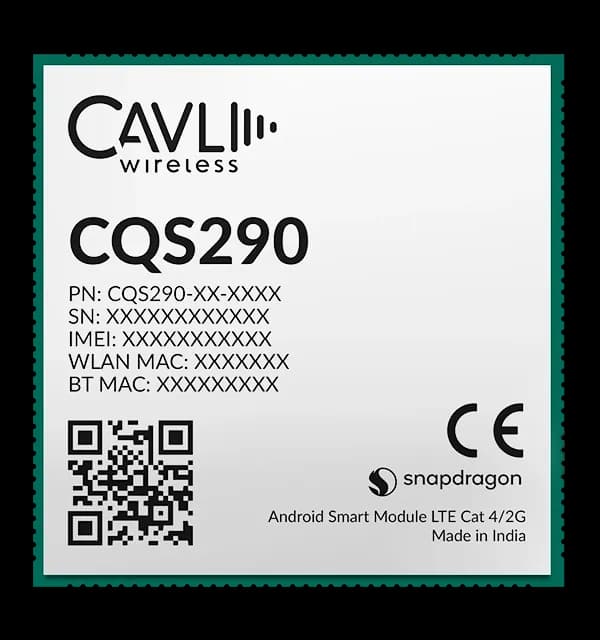

CQS290_LCC+LGA
CQS290_LCC+LGA
SCROLL

CQS290 LTE Cat 4 Android Smart Modules

Cavli debuted the CQS290 as a flagship series of LTE Cat 4 Android smart modules with 2G fallback capability. The module is powered by ARM™ Cortex A53 quad-core CPU architecture and built-in Adreno™ 702 GPU that delivers stronger graphics capabilities, better image quality, and excellent battery efficiency. CQS290 supports versatile features such as USB 2.0 with OTG function, Bluetooth 5.0, FM & Wi-Fi 5 making it ideal for a wide range of applications such as POS terminals, Smart Vending Machines, Smart Kiosks etc.

With extensive SDK support powered by AOSP, the module's functionalities can be customised and tailored to suite an OEM's solution requirements. Available in global variants with various memory configurations, CQS290 supports multi-constellation GNSS, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS powered by the Qualcomm Location Suite Gen 9VT. The module comes with optional integrated eSIM with global connectivity powered by the Cavli Hubble platform.

Key Highlights

Quad core Arm Cortex A53 processor up to 2 GHz

Quad core Arm Cortex A53 processor up to 2 GHz

LTE Cat 4

LTE Cat 4

Integrated eSIM

Integrated eSIM

Powered by Cavli Hubble

Cavli Hubble

In-built GNSS

In-built GNSS

LCD Interface

LCD Interface

GLOBAL

Applicable Region - GLOBAL

Available Form-Factors

LCC+LGA

LCC+LGA

Technical Data

Cellular Bands Supported

WW : B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 /B38 /B40 /B41 /B66 /B71* | GSM – 900/1800 MHz

Supported Location Services

GPS / BDS / GLONASS / Galileo QZSS / SBAS Ranging Support CQS290: L1

OS

Android / Linux OS

Cellular Connectivity Download & Uplink Speed (* Peak Values)

LTE Cat 4 : 150Mbps (DL) & 50 Mbps (UL)

GSM 2G : 236.8Kbps (DL) & 236.8 Kbps (UL)

Packaging

Dimension : 40.5 x 40.5 x TBD mm, LCC+LGA Package

Interfaces

1xLCD (DSI)**, 2xCamera (CSI)**, 2xCCI I2C, 2xAnalog Audio Out**, 2xAnalog Audio In, 2xDigital Audio In, 1xUSB 2.0(OTG Support), 1xUSIM, 3xUART, 1xJTAG, 37xGPIO**, 1xSDC 3.0, 1xADC**, 2xI2C**, 1xI3C**, 1xSPI**, 1xTouch Interface (I2C), 1xVIB_DRV, 1xWi-FI & Bluetooth ANT, 1xMain ANT, 1xDIV ANT, 1xGNSS ANT

*Optional feature    |  **Requires SDK

Applicable Industries

icon

Health Care & E-Health

icon

Retail

icon

Energy & Utilities

icon

Manufacturing

icon

Safety Security

icon

Smart City

icon

Automotive Logistics

Variants Available for Ordering Samples

ModulesGNSSeSIMFlash
CQS290-WW-464GNAN L1L1No4 GB LPDDR4X / 64 GB eMMC 4 GB LPDDR4X / 64 GB eMMC
CQS290-WW-464GNAH L1L1Yes4 GB LPDDR4X / 64 GB eMMC4 GB LPDDR4X / 64 GB eMMC
CQS290-WW-332GNANL1L1No3 GB LPDDR4X / 32 GB eMMC3 GB LPDDR4X / 32 GB eMMC
CQS290-WW-232GNANL1L1No2 GB LPDDR4X / 32 GB eMMC2 GB LPDDR4X / 32 GB eMMC
CQS290-WW-232GNAH L1L1Yes2 GB LPDDR4X / 32 GB eMMC 2 GB LPDDR4X / 32 GB eMMC
* CQS290 is also available in eSIM and non-eSIM variants, with regional SKU's such as EAJ, EU, AN, LA, IN and NA in multiple memory configurations

Downloadable Resources

Product Brochure_Downloadable Resources

Product Brochure

Product Brochure_Downloadable Resources

Product Brochure

Go Beyond and Explore

1.

How does the CQS290 module support advanced graphics and multimedia processing in IoT applications?

The CQS290 module is powered by an ARM Cortex A53 quad-core CPU and Qualcomm Adreno™ 702 GPU, providing enhanced graphics capabilities and efficient multimedia processing. This makes it ideal for applications such as automotive instrument clusters, smart POS terminals, and other IoT devices requiring high-quality visuals and robust processing power.

2.

What GNSS capabilities does the CQS290 module offer?

The CQS290 module includes multi-constellation GNSS support, featuring GPS, BDS, GLONASS, Galileo, QZSS, and SBAS. Powered by Qualcomm Location Suite Gen 9VT, this ensures precise and reliable positioning for applications like vehicle telematics and smart city infrastructure.

3.

Is the CQS290 module integrated with the Cavli Hubble Platform for device management?

Yes, the CQS290 module is fully compatible with the Cavli Hubble Platform. This integration allows seamless device management, remote diagnostics, and global connectivity through eSIM provisioning, making it a powerful solution for large-scale IoT deployments. For more information, visit the Cavli Hubble Platform.

4.

What interfaces does the CQS290 module offer for connecting external peripherals?

The CQS290 module offers a wide range of interfaces, including USB 2.0 with OTG support, UART, I2C, SPI, MIPI-DSI, GPIOs, and multiple camera and audio inputs/outputs. These interfaces enable the module to connect with various peripherals, making it versatile for diverse IoT applications, including automotive systems and industrial automation.

5.

How does the CQS290 module support global LTE connectivity and fallback options?

The CQS290 module is designed with LTE Cat 4 and 2G fallback capabilities, supporting multiple cellular bands across different regions (APAC, EMEA, North America). This ensures reliable and continuous connectivity, even in regions with varying network standards, making it suitable for global IoT deployments in sectors like automotive, logistics, and smart cities.

6.

Are there additional features offered on the CQS290 module?

The CQS290 module is designed with an integrated MIPI-DSI interface, enabling out of the box configuration for Touchscreen LCD displays (up to a resolution of 1680x720 @60Hz) to power use cases like two-wheeler & four-wheeler clusters, etc. It is also bundled with WiFi 5 and BLE 5.0, enabling our customers to add additional wireless connectivity support for their smart solutions. Moreover, Camera support (up to 48MP NZSL) is also available, along with Haptic Driver support.

7.

Where can I purchase the CQS290 module, its Evaluation Kit (EVK), and download technical brochures?

p> You can purchase the CQS290 module and its Evaluation Kits (EVKs) through the Cavli Wireless store or from authorized distributors. Visit the CQS290 product page and select "ORDER SAMPLES" to purchase the module. If you need an Evaluation Kit, you can obtain it by clicking "ORDER DDKs". Detailed technical documents can be downloaded by navigating to "Downloadable Resources".
