LTE Cat 1bis is the LTE-variant developed for the Internet of Things (IoT) and Machine-to-Machine (M2M) communications. It was introduced in 3GPP Release 13 in 2016. LTE Cat 1bis delivers the same throughput as LTE Cat 1 with a single antenna, reducing costs for OEMs and IoT solution providers.
LTE Cat 1bis technology offers a more compact and simple design when compared to LTE Cat 1. It provides a balanced solution for wireless communication that prioritizes both power efficiency and reliable data transmission. The major LTE Cat 1bis applications include smart asset tracking, logistics and supply chain management, and smart sensoring. Smart metering, smart cities, and other micro-mobility applications use LTE Cat 1.bis modules.
Gain Full IoT Potential with Reliable Low-power Connectivity Solutions
Cavli Wireless brings LTE Cat 1bis modules to the IoT domain to power the benefits of lower power consumption and extended device lifespan significantly utilizing the power-saving modes. Our LTE Cat 1bis modules significantly reduce power usage in IoT deployments with advanced power-saving modes. It also features integrated GNSS capability for precise location tracking and eSIM support for seamless global connectivity. These enhancements offer substantial space optimization for OEMs, enabling the development of more compact and efficient IoT solutions. Cavli Wireless stands by your side in delivering efficient LTE Cat 1bis cellular IoT modules that can be leveraged for all your IoT needs.

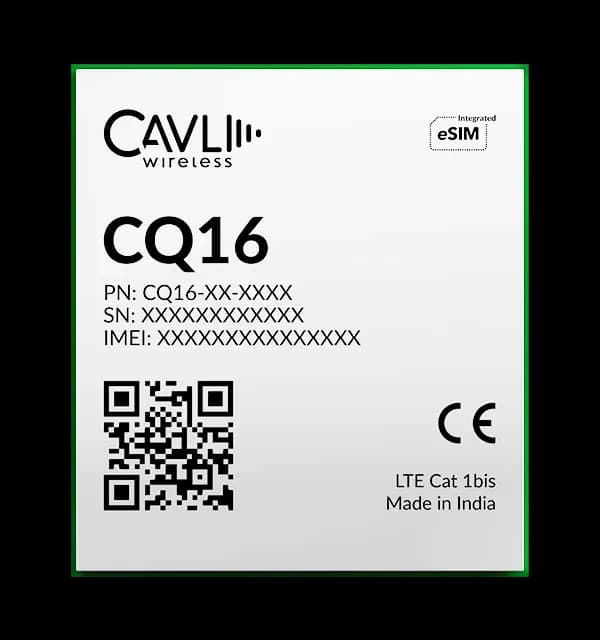

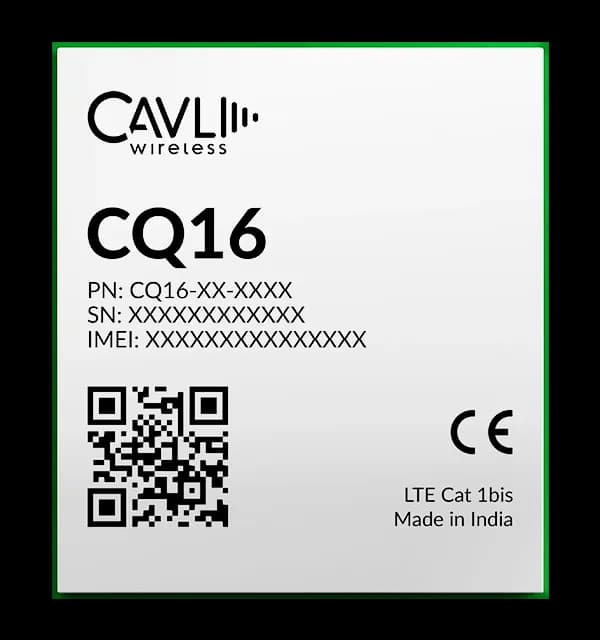

LTE Cat 1bis IoT Modules
Cellular Bands Supported
NA : 2/ 4/ 5/ 12/ 13/ 25/ 66
AN : 1/ 3/ 5/ 8/ 18/ 19/ 26/ 28
EU : 1/ 3/ 7/ 8/ 20/ 28
IN : 1/ 3/ 5/ 8/ 40/ 41
OS
FreeRTOS
Interfaces
3xUART, 1xUSB2.0, 1xUSIM, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 3xGPIO**, 1xMain ANT
Cellular Connectivity Download & Uplink Speed
LTE Cat 1bis : 10Mbps (DL), 5Mbps (UL)
Key Highlights
Integrated eSIM, Power Saving Modes, Powered by Cavli Hubble, Compact Form Factor Design, USB 2.0 Interface, LTE Cat 1bis, DFOTA Available, Max UART speed upto 3Mbps, Applicable regions - (N.A, AN, EU, and IN)

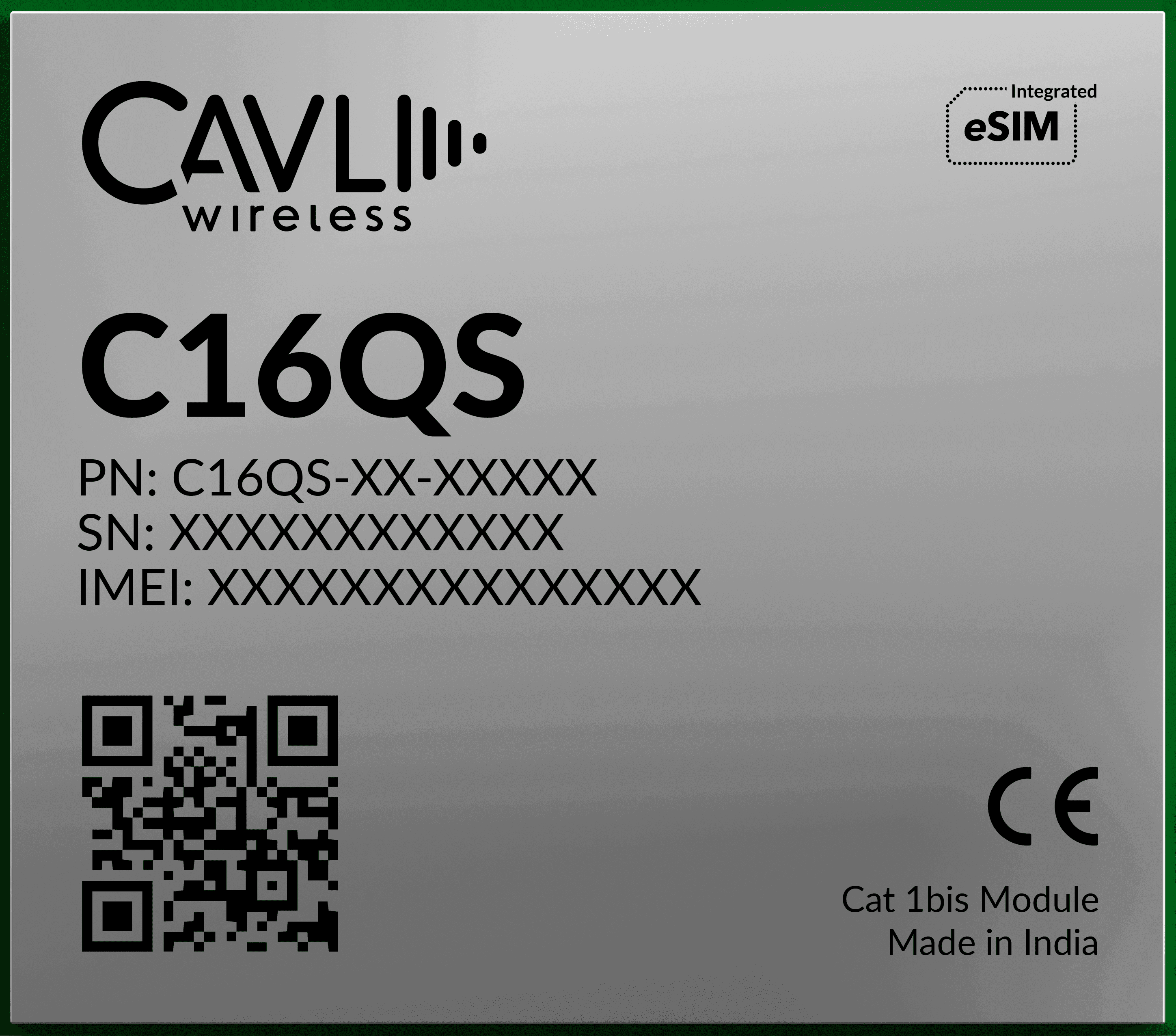

Cellular Bands Supported
EMEA / APAC : B1 / B3 / B5 / B8 / B20
NA : B2 / B4 / B5 / B12 / B13 / B66
LA : B2 / B3 / B4 / B7 / B8/ B28
AN : B1 / B3 / B5 / B8 / B18 / B19 / B26 / B28
WW (Global) : B1/ B2 /B3 /B4 /B5 /B7 /B8 /B12 /B18 /B19 /B20 /B25 /B26 /B28 /B40 /B41 /B66
OS
FreeRTOS
Interfaces
3xUART, 1xUSB2.0, 1xUSIM, 1xSWD, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 4xGPIO**, 1xMain ANT, 1xGNSS ANT*
Cellular Connectivity Download & Uplink Speed
LTE Cat 1bis : 10Mbps (DL), 5Mbps (UL)
Key Highlights
Integrated eSIM, GNSS Support, Power Saving Mode, Powered by Cavli Hubble, Small Form Factor Design, USB 2.0 Interface, LTE Cat 1bis, DFOTA Available, Max UART speed upto 3Mbps, Independent GNSS, WiFi Scanning Support, Applicable regions

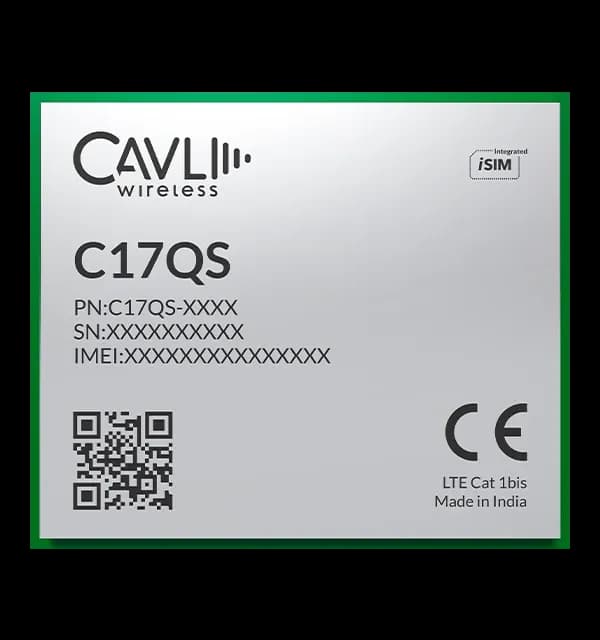

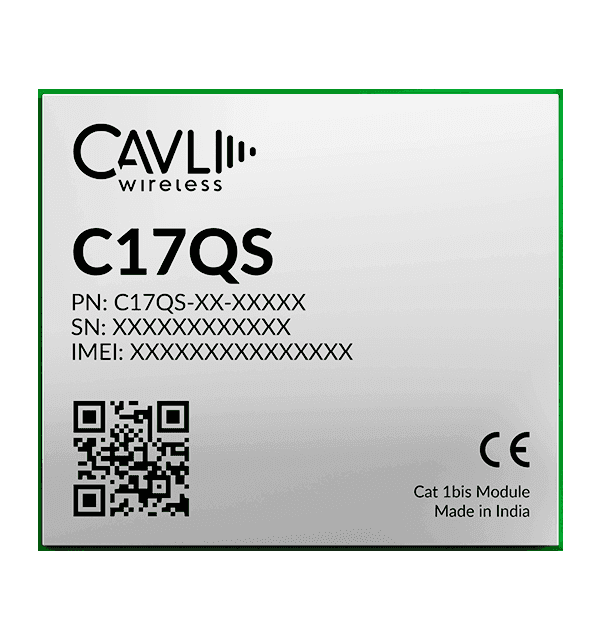

Cellular Bands Supported
Global : B1/B2/B3/B4/B5/B7/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B28/ B34/B38 TDD/B39/B40 TDD/ B41 TDD/B66/B71
OS
Free RTOS
Interfaces
UART x4, USB 2.0 x1, USIM x1, SWD x1, Network Status Indicator x1, Power ON Status Indicator x1, ADC** x2, I2S** x1, I2C** x2, SPI** x1, GPIO** x8, Main ANT x1, GNSS ANT 1 x1
Cellular Connectivity Download & Uplink Speed
Cat 1bis : DL 10Mbps & UL 5Mbps
Key Highlights
LTE Cat 1bis, Integrated GNSS, iSIM Capable, FreeRTOS, Open SDK Support, Power Saving Modes, Small Form Factor Design, Low Power Consumption, USB 2.0 Interface, Wifi Scanning Support
