CQ20 is an LTE Cat 4 module with 2G fall back compliant with 3GPP release 10 standards, with emphasis on data speed/bandwidth. Engineered in LCC+LGA form factor, it delivers a maximum data rate of 150 Mbit/s DL & 50 Mbit/s UL. CQ20 supports in-built GNSS powered by Qualcomm® IZatTM location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS), ensuring precise positioning. Additionally, it supports VoLTE and SMS over IMS/SG/CS and a wide variety of Internet protocols and industry-standard hardware interfaces.
The module comes in a world wide variant: CQ20-WW for worldwide deployments with other regional variants under development. Featuring an optional integrated eSIM powered by Cavli Hubble platform, the module provides seamless global connectivity and wide coverage which helps to reduce the time to market. CQ20 is tailored for IoT and M2M applications, such as asset tracking, automotive, e-mobility, data loggers, fleet management, environmental monitoring and much more.
Key Highlights
Applicable Region - GLOBAL
Integrated eSIM
Powered by Cavli Hubble
In-built dual band GNSS
2G Fallback
VoLTE Support
SMS over IMS/SG/CS
USB 3.1 Gen2 Interface
OpenSDK Support
USB OTG support

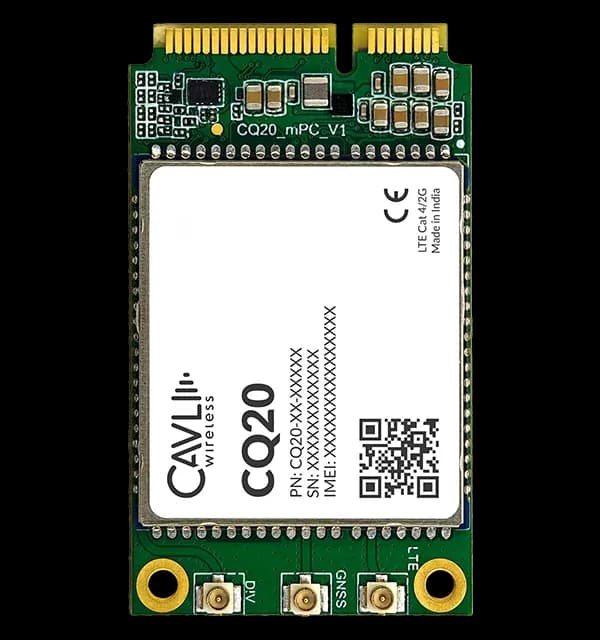

Available Form-Factors
LGA
Technical Data
Cellular Bands Supported
WW : LTE - 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/40/66
NA : LTE - 2/4/5/12/13/25/66
EAJ : LTE - 1/3/5/7/8/18/19/20/26/28/40
EU : LTE - 1/3/7/8/20/28
IN : LTE - 1/3/5/8/40
AN : LTE - 1/3/5/8/18/19/26/28
LA : LTE - 1/2/3/4/5/7/8
Supported Location Services
GPS / GLONASS / BeiDou / Galileo / QZSS Capable
OS
Yocto Linux (Kernel 4.14)
Cellular Connectivity Download & Uplink Speed (* Peak Values)
LTE Cat 4 : 150 Mbps (DL), 50 Mbps (UL)
2G : 236.8 Kbps (DL), 236.8 Kbps (UL)
Packaging
Dimension : 32 x 29 x TBD mm, LCC+LGA Package
Interfaces
UART x3, USB 2.0 (HS) x1, HSIC x1, WLAN/BT (External) x1, SDC x2, USIM (1.8V / 2.85V) x1, Network Status Indicator x2, Power ON Status Indicator x1, SGMII x1, I2C x1**, ADC x2, PCM x1**, JTAG x1, Main ANT x1, GNSS ANT x1, Diversity ANT x1
Applicable Industries
Smart City
Agriculture
Energy & Utilities
Manufacturing
