C16QS is a series of LTE Cat 1bis modules that comply with 3GPP release 14 specifications, specifically designed for IoT and M2M applications. It offers support for optional integrated GNSS, making it well-suited for location tracking applications. Additionally, it provides the option of an integrated eSIM, enabling global connectivity through the Cavli Hubble Device and connectivity management platform.
The C16QS module is ideal for IoT solution makers interested in switching from legacy 2G and 3G solutions to LTE. It has enhanced tracking features that process GPS data on the edge, independent LTE and GNSS power supply and sleep features, and low power modes, making it ideal for applications such as asset tracking, POS, remote monitoring, and energy metering.
The C16QS module is available in five variants tailored for specific regions: C16QS-EA for EMEA and APAC regions, C16QS-NA for the North American region, C16QS-LA for the Latin American region, C16QS-AN for the Australia and New Zealand regions, C16QS-WW for Global use case. It maintains pin compatibility with Cavli C42GM and C42QM modules.
Key Highlights
Max UART speed upto 3Mbps
Small Form Factor Design
Applicable regions - (APAC, EMEA, N.A, S.A, AUS ,NZ and Global)
Independent GNSS
WiFi Scanning Support
Integrated eSIM
In-built dual band GNSS
Power Saving Modes
Powered by Cavli Hubble
DFOTA Available
USB 3.1 Gen2 Interface
Available Form-Factors
LGA

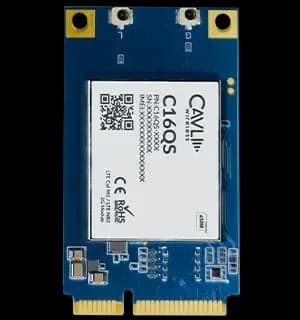

C16QS MiniPCIe
Technical Data
Cellular Bands Supported
EMEA / APAC : B1 / B3 / B5 / B8 / B20
NA : B2 / B4 / B5 / B12 / B13 / B66
LA : B2 / B3 / B4 / B7 / B8/ B28
AN : B1 / B3 / B5 / B8 / B18 / B19 / B26 / B28
WW (Global) : B1/ B2 /B3 /B4 /B5 /B7 /B8 /B12 /B18 /B19 /B20 /B25 /B26 /B28 /B40 /B41 /B66
Supported Location Services
GPS / BeiDou
OS
FreeRTOS
Cellular Connectivity Download & Uplink Speed (* Peak Values)
LTE Cat 1bis : 10Mbps (DL), 5Mbps (UL)
Packaging
Dimension : 26.5 x 22.5 x 2.3 mm, LGA Package
Interfaces
3xUART, 1xUSB2.0, 1xUSIM, 1xSWD, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 4xGPIO**, 1xMain ANT, 1xGNSS ANT*
Applicable Industries
Health Care & E-Health
Retail
Energy & Utilities
Manufacturing
Smart City
Safety Security
Automotive Logistics
