CQM220 is a 5G RedCap module compatible with 3GPP release 17 standards for IoT and M2M applications. It delivers maximum data bandwidth upto 226Mbps in downlink and 121Mbps. The module is available in LCC+LGA, mPCIe and M.2 form factors. CQM220 also supports optional in-built GNSS making it ideal for tracking applications. The module comes with OpenWrt based OpenSDK, ensuring application level coding for specific without requiring an external host MCU. CQM220 is perfect for applications that require higher data throughput with location information and global deployments such as Asset Tracking, Vehicular Telemetry System, Industry 4.0 etc.
Key Highlights
Arm Cortex A7 upto 1.7Ghz
LTE Cat 19 Fallback
5G NR
In-built dual band GNSS
Open SDK Support
USB OTG support
USB 3.1 Gen2 Interface
Available Form-Factors

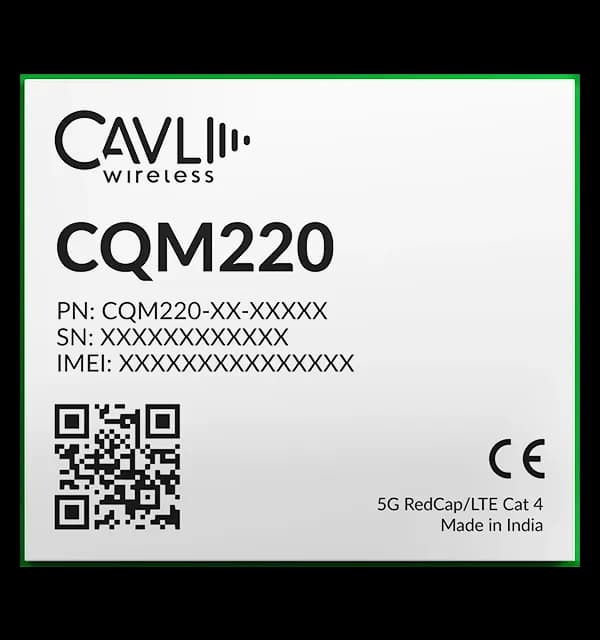

CQM 220
Technical Data
Cellular Bands Supported
5G : n77/n78
4G : B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B18/ B20/ B25/ B26/ B28A/ B28B/ B30/B38/ B40/ B41/ B66/ B70/ B71
Supported Location Services
GPS, GLONASS, NavIC, BEIDOU, Galileo SBAS + QZSS Capable
OS
Cellular Connectivity Download & Uplink Speed (* Peak Values)
5G RedCap : 226 Mbps (DL), 121 Mbps (UL)
4G : DL 150 Mbps, UL 50 Mbps
Packaging
Dimension : 32.0 x 29.0 x TBD mm, LCC+LGA Package
Interfaces
1xI2C*, 3xUART, 1x12S, 1xPCM, 1xMAIN_ANT, 1xGNSS_ANT, 1xDIV_ANT, 1xSDC*, 1xSGMII
Applicable Industries
Energy & Utilities
Manufacturing
Safety Security
Smart City
Automotive Logistics
