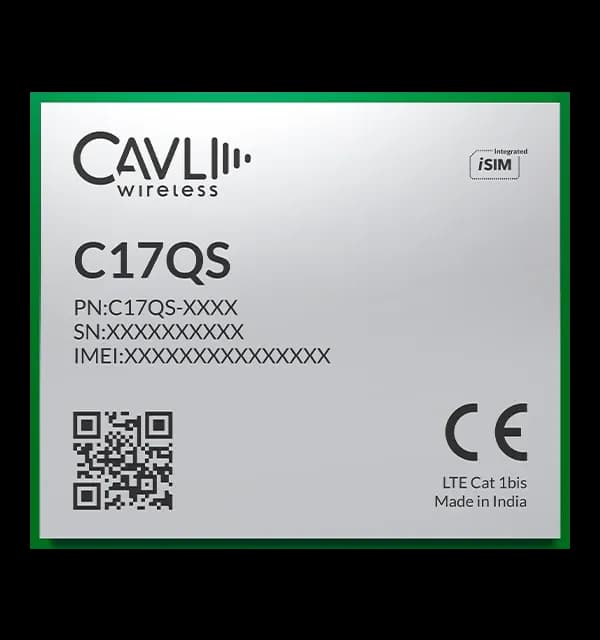

Cavli C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions. With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in World wide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensure prolonged life cycles in both battery powered and externally powered usecases.
The small form-factor and versatile interfacing capabilities ensure that C17QS is ideal for solutions that require great connectivity, tracking capabilities but are heavily constrained by space and power limitations.
Key Highlights
iSim
Wifi Scanning Support
Low Power Consumption
LTE Cat 1bis
In-built dual band GNSS
Open SDK Support
Free RTOS
Power Saving Modes
DFOTA Available
USB 3.1 Gen2 Interface
Form Factor Design
Available Form-Factors
LGA
Technical Data
Cellular Bands Supported
Global : B1/B2/B3/B4/B5/B7/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B28/ B34/B38 TDD/B39/B40 TDD/ B41 TDD/B66/B71
Supported Location Services
GPS, GLONASS, Galileo, NavIC, BDS, QZSS, and SBAS Capable
OS
Free RTOS
Cellular Connectivity Download & Uplink Speed (* Peak Values)
Cat 1bis : DL 10Mbps & UL 5Mbps
Packaging
Dimension : 26.5 x 22.5 x 2.3 mm, LGA Package
Interfaces
UART x4, USB 2.0 x1, USIM x1, SWD x1, Network Status Indicator x1, Power ON Status Indicator x1, ADC** x2, I2S** x1, I2C** x2, SPI** x1, GPIO** x8, Main ANT x1, GNSS ANT 1 x1
Applicable Industries
Health Care & E-Health
Retail
Energy & Utilities
Manufacturing
Smart City
Safety Security
Automotive & Logistics
