Understanding Battery Management Systems in Electric Vehicles

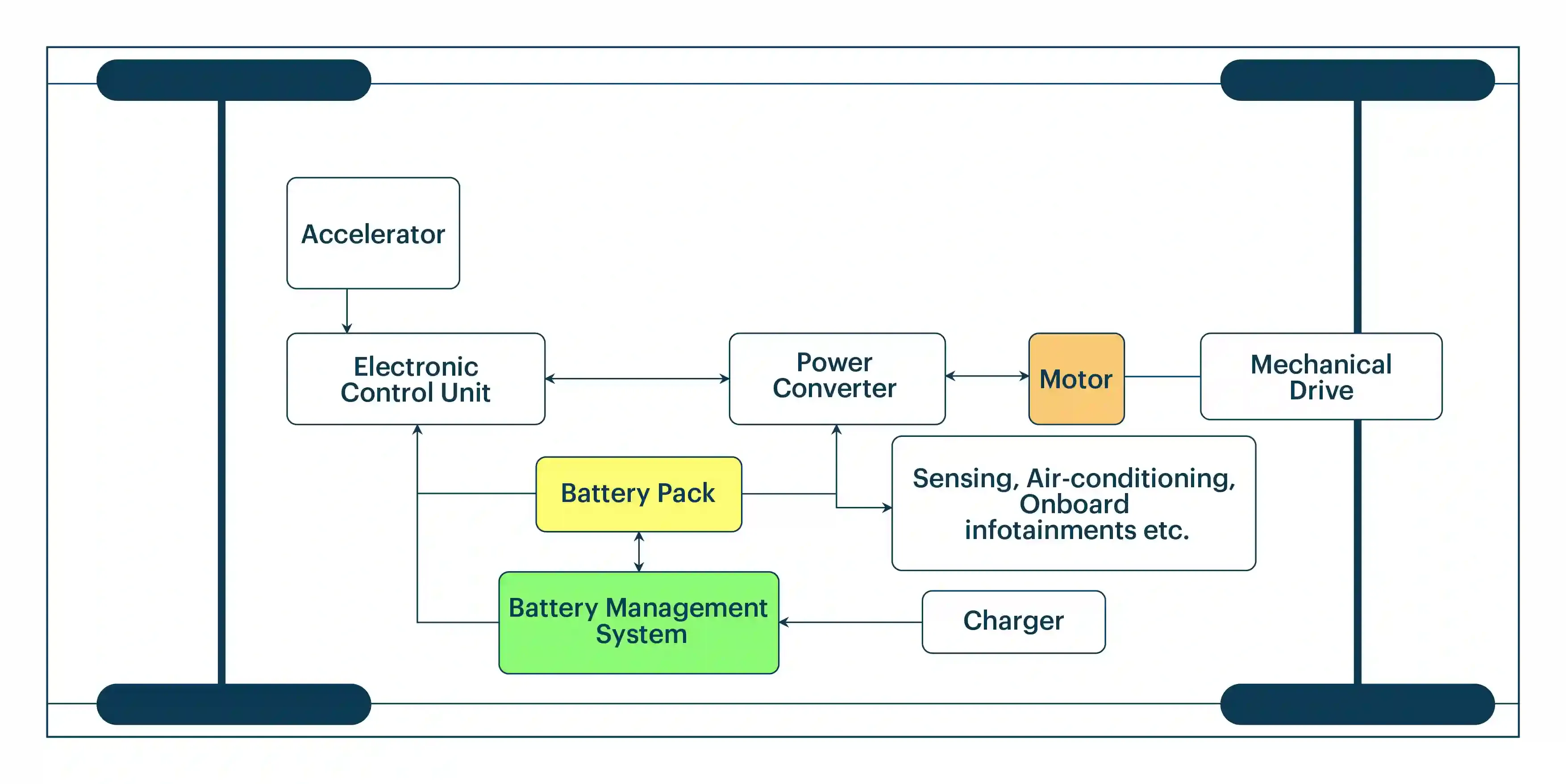

The Battery Management System (BMS) in an electric vehicle is a critical system that monitors, manages, and safeguards the battery pack to ensure optimal performance, safety, and longevity. It oversees core functions such as State of Charge (SOC) estimation, cell balancing, thermal management, and fault diagnosis, helping to prevent issues like overcharging, deep discharging, and overheating. By continuously tracking parameters like voltage, current, and temperature, the BMS enables real-time data-driven decisions that enhance the reliability and safety of the EV battery pack.

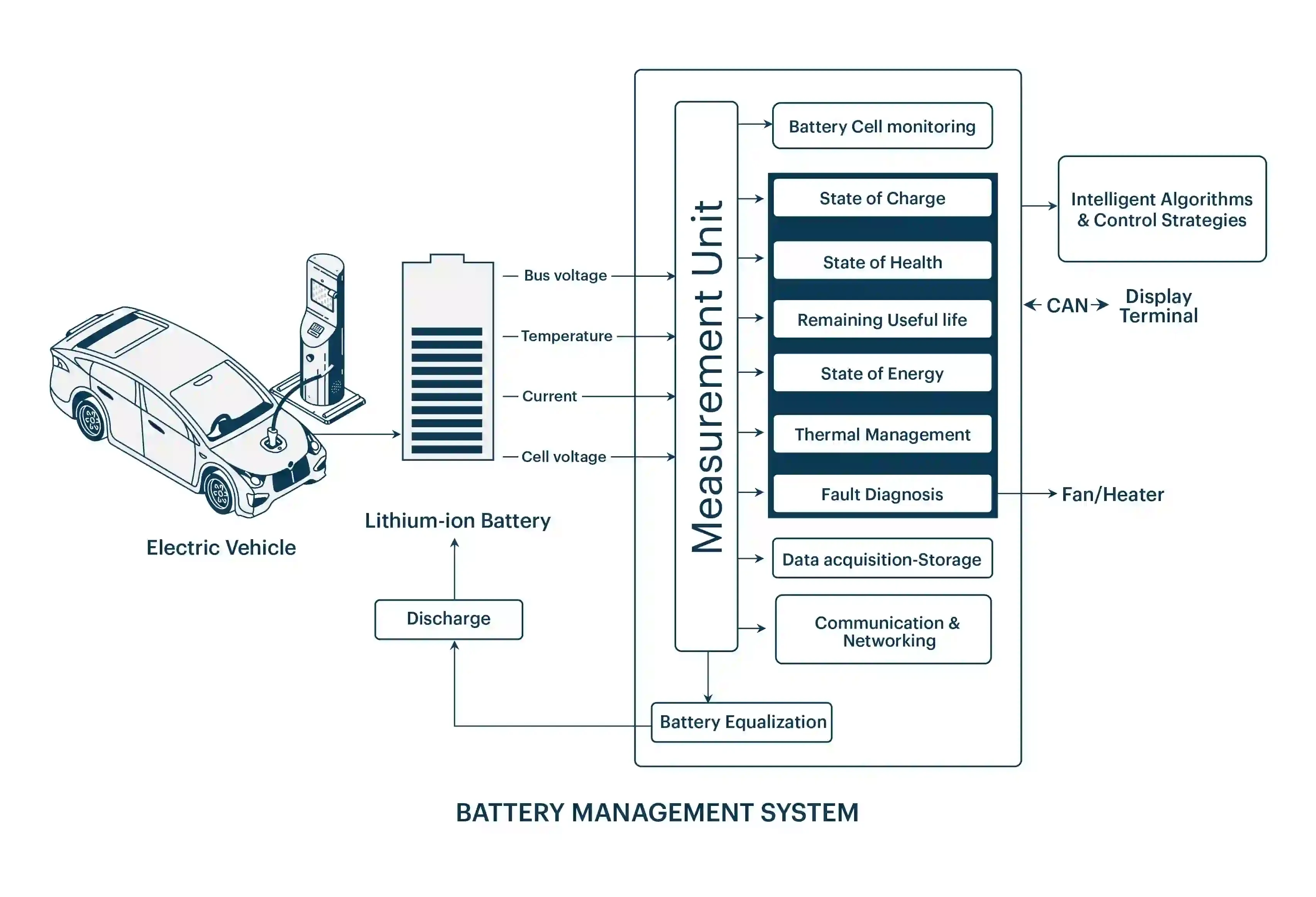

A Battery Management System for electric Vehicles functions by monitoring and managing the health and performance of each battery cell. It performs SOC calculations, balances individual cells to maintain uniform voltage across the battery pack, and provides thermal management through active cooling or heating systems. The BMS also incorporates fault diagnostics, detecting any deviations in cell health or performance, and mitigates potential issues through alert mechanisms and safety protocols. This proactive monitoring and management are essential for optimizing the efficiency and durability of the EV's power system.

Choosing an optimal Battery Management System (BMS) for electric Vehicles depends on factors such as battery chemistry, pack size, operating environment, and desired safety features. Engineers should evaluate BMS capabilities in SOC accuracy, cell balancing techniques (active or passive), thermal management efficiency, and fault detection mechanisms. The BMS should also support integration with the EV’s energy management and control systems, ensuring seamless communication and real-time data tracking. Customizability and compatibility with industry standards are also critical considerations when selecting a BMS for specific EV applications.

Most rechargeable batteries used in electric vehicles, particularly lithium-ion batteries, require a Battery Management System (BMS) due to their high energy density, sensitivity to overcharge/discharge, and thermal requirements. Other battery chemistries, such as lithium iron phosphate (LiFePO4) and nickel-metal hydride (NiMH), also benefit significantly from BMS integration. The BMS safeguards these batteries by regulating voltage, current, and temperature to prevent degradation, ensuring efficient performance and longevity across varying EV operating conditions.

Battery Management Systems in electric vehicles often utilize software tailored for real-time monitoring, control, and diagnostics. Advanced BMS software includes custom algorithms for SOC and State of Health (SOH) estimation, thermal regulation, and fault detection. Examples of commonly used software platforms include MATLAB/Simulink for BMS simulation and control algorithms, and AUTOSAR (Automotive Open System Architecture) standards for embedded software in BMS. These software platforms enable precise control, data analytics, and integration with the EV’s overall energy management architecture, supporting efficient and safe battery operations.
